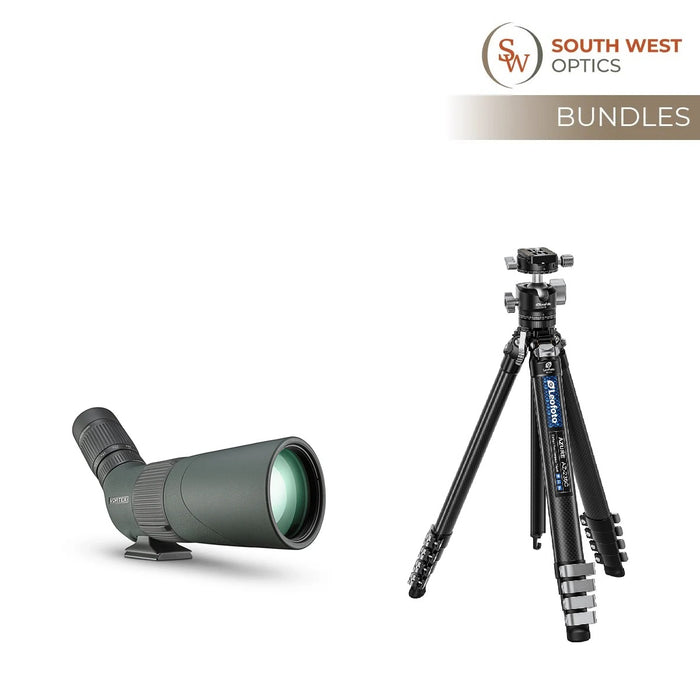

Vortex Razor HD 13-39x56 Angled Spotting Scope and Leofoto Azure series AZ-235C Tripod with LH-30R Ballhead Bundle

The Vortex Razor HD 13–39x56 Angled Spotting Scope is crafted for outdoor enthusiasts who demand premium optical performance in a compact, highly portable design. Delivering exceptional resolution, colour fidelity and brightness, it offers clear, detailed views whether you are observing wildlife, studying landscapes, or enjoying long-distance nature viewing. With rugged construction and advanced lens technology, the Razor HD provides consistent clarity and reliability in all conditions, making it an outstanding companion for serious outdoor exploration.

The Leofoto Azure AZ‑235C + LH‑30R tripod set redefines portability and performance for outdoor and studio professionals. Crafted from 10‑layer carbon fibre with 6061‑T6 aluminium components, it weighs just 1.5 kg while supporting up to 10 kg of equipment. The 5‑segment legs fold to a compact 48.6 cm for effortless transport yet extend to a maximum height of 161.2 cm and descend to a mere 17.1 cm—offering remarkable versatility for landscape, macro, or low-angle perspectives.

Every structural element enhances stability and adaptability: the Y‑shaped centre column reduces vibrations in a compact design, oval legs boost torsional rigidity across four leg‑angle settings, and durable rubber‑to‑spike feet ensure secure footing on varied terrain. A user‑friendly quick‑release clamp lever enables rapid height adjustments—even with gloves on.

Included accessories elevate creative workflow: a short and reversible centre column supports overhead and macro framing, while the integrated LH‑30R ball head features smooth 360° panoramic movement. A 1/4" accessory thread and stabilisation hook allow attachment of lights, monitors, or counterweights—making this set a travel‑ready powerhouse.

Vortex Razor HD 13–39x56 Angled Spotting Scope

HD Optical System – Select glass elements reduce chromatic aberration and deliver exceptional resolution with accurate, vibrant colour and edge-to-edge clarity.

XR™ Plus Lens Coatings – Premium anti-reflective coatings maximise light transmission for outstanding brightness and clarity, even in low light.

Dielectric Prism Coatings – Multi-layer prism coatings ensure bright, clear and colour-true images.

Phase Correction – Enhances contrast and resolution for improved image fidelity.

APO Apochromatic Design – Index-matched lenses correct colour across the full visual spectrum for exceptional optical performance.

ArmorTek® Protective Coating – Ultra-hard coating protects exterior lenses from scratches, oil and dirt.

Plasma Tech Coating Application – Advanced coating process increases durability and long-term performance.

Helical Focus System – Smooth, snag-free focusing for quick adjustments and easy, compact packing.

Rubber Armour Exterior – Provides a secure grip and protects against bumps and scrapes.

Argon Gas Purged – Ensures fogproof and waterproof performance in any environment.

Shockproof Construction – Engineered to withstand impacts for reliable field use.

Tripod Adaptable – Can be mounted to a tripod for stable, hands-free viewing (adapter may be required).

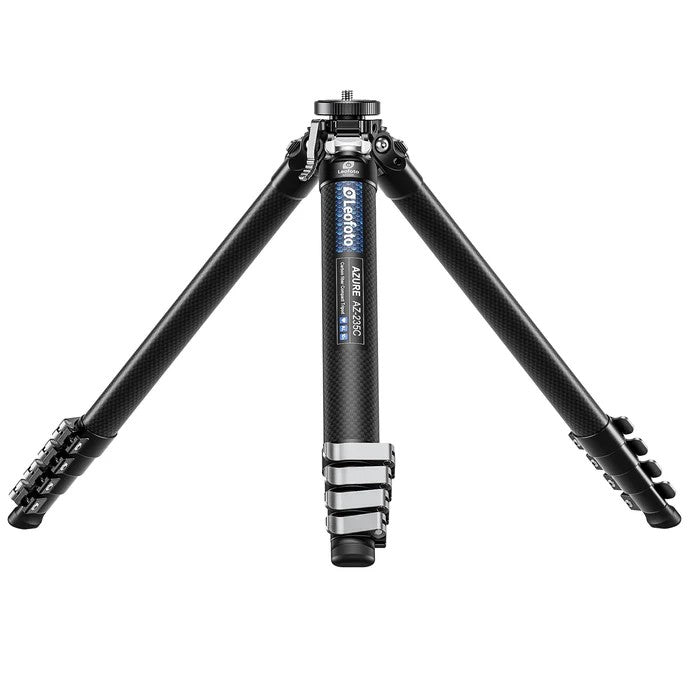

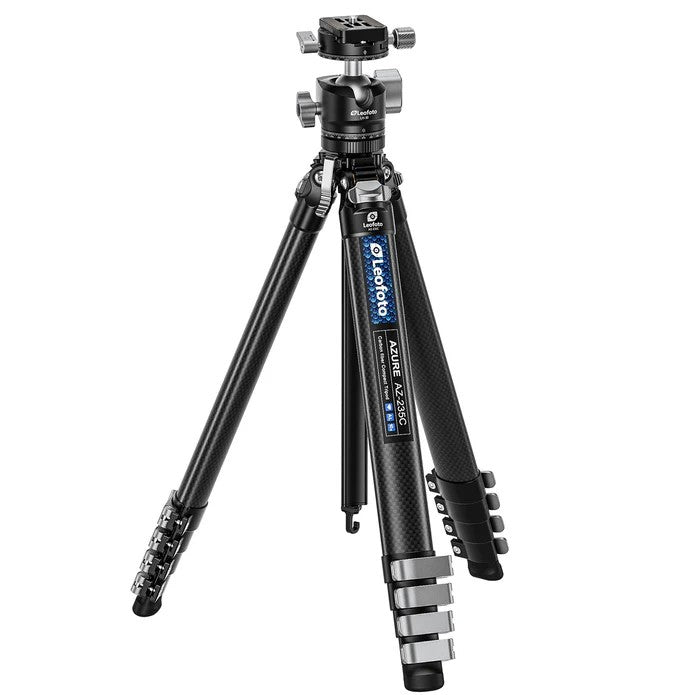

Leofoto Azure series AZ-235C Tripod with LH-30R Ballhead

Y-shaped centre column: Effectively reduces vibrations and allows for a particularly compact pack size – ideal for travel and mobile use.

Oval tripod legs: Improve torsional rigidity and increase the overall stability of the tripod.

Quick-release clamp lever: For quick and convenient height adjustment – easy to operate even when wearing gloves.

Spikes under rubber caps: For a secure footing on uneven ground – simply pull off the rubber cap.

Flexible centre column: Quickly adjustable with a clamp lever to react quickly to new perspectives.

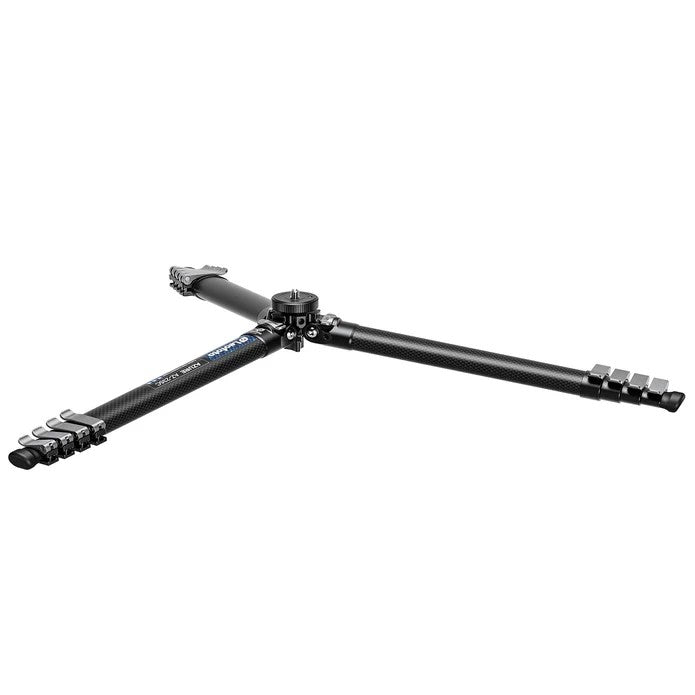

Four leg angle settings: For flat camera positions, slopes or creative angles.

Short centre column included: Ideal for macro or nature shots close to the ground.

Reversible centre column: For reproduction shots or overhead perspectives.

1/4" connection thread on the tripod shoulder: Perfect for mounting accessories such as LED lights, microphones or monitors.

Stabilisation hook: For attaching weights such as a camera bag – for even greater stability.

Integrated ballhead with panorama rotation: For smooth 360° movements and precise camera alignment.

Vortex Razor HD 13–39x56 Angled Spotting Scope
Magnification: 13–39x
Objective Lens Diameter: 56 mm
Eye Relief: 15.0mm – 17.8mm
Angular Field of View: 3.2° – 1.7°
Close Focus: 9.2'
Linear Field of View: 168' – 89' @ 1000 yds
Length: 10.4"
Weight: 811 g

Leofoto Azure series AZ-235C Tripod with LH-30R Ballhead

Load capacity (kg): 10
Max. tripod height (cm): 161
Min. tripod height (cm): 17.1
Ball diameter (mm): 30
Carrying length (cm): 48.6
Connector thread on tripod head: 3/8"
Suitable for: Photo
Clamp: Arca-Swiss
Thread for camera recording: 1/4"
Material: Carbon
Tripod head material: Aluminium
Inclination range (°): 90
Bending range (°): 360
Tripod leg extension: 4
Tripod leg extension adjustment: Clamp lock
Maximum spread angle (°): 82
Tripod pad: Rubber foot / spike combination
Number of levels: 1
Friction: No
Tilt lock: Yes
Panorama scale: Yes
Quick-release plate: Yes
Shoulder belt: No
Bending clamp: -
Tripod head included with product contents: Ball head
Video tilt head: No
Hollow Ball: No
Central column: Yes
