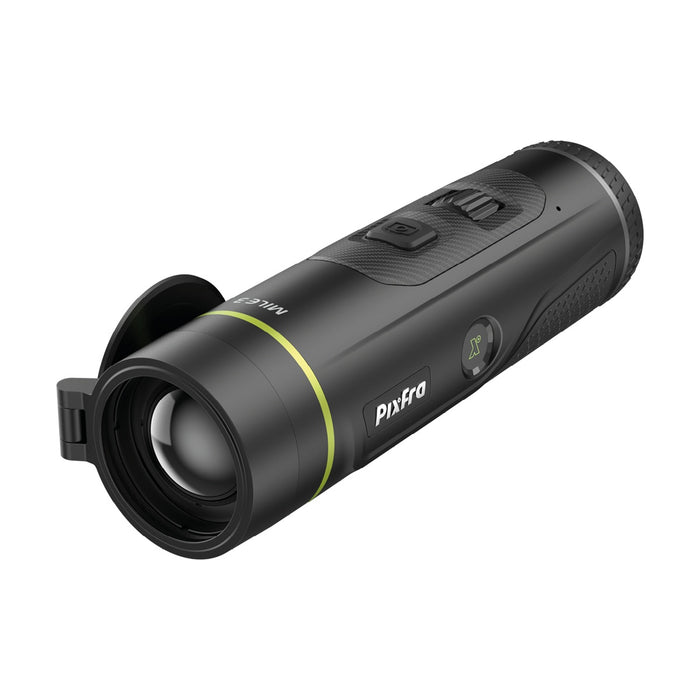

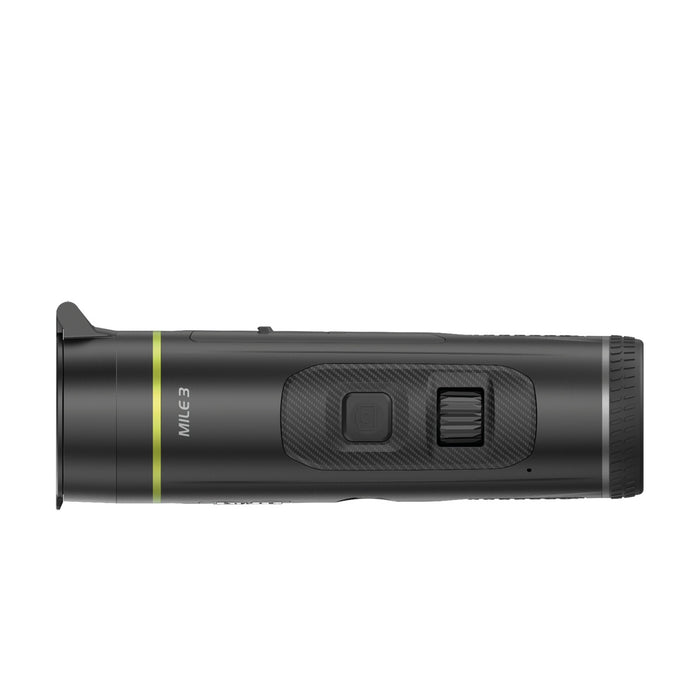

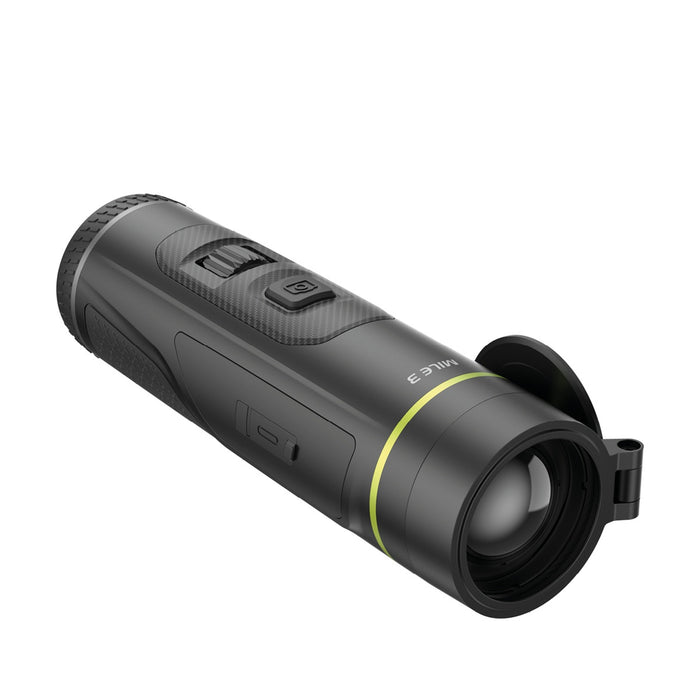

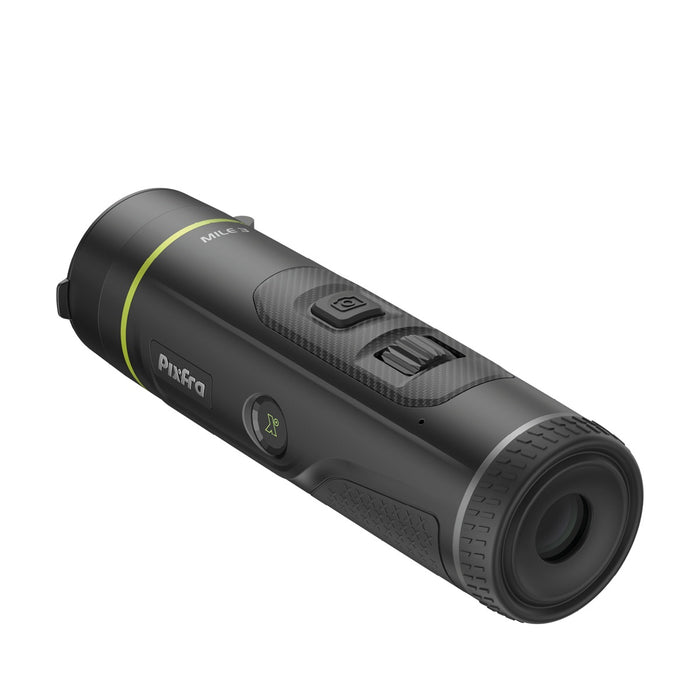

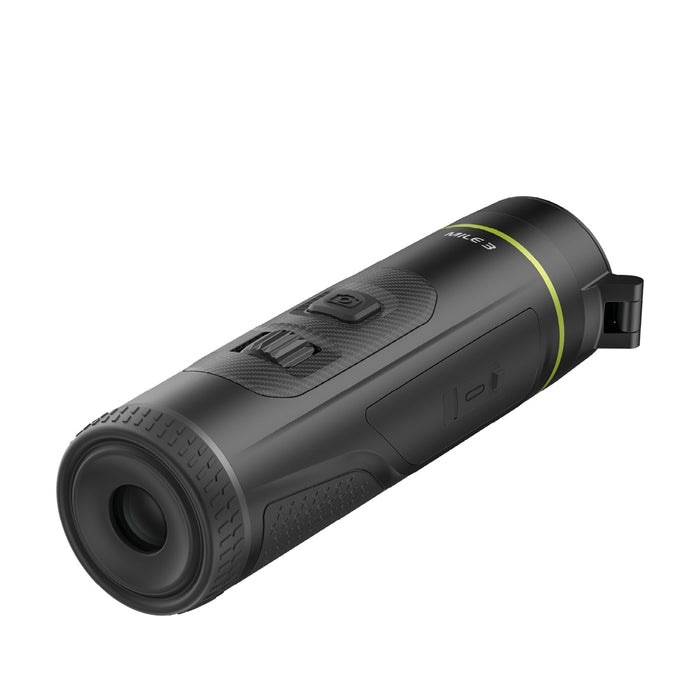

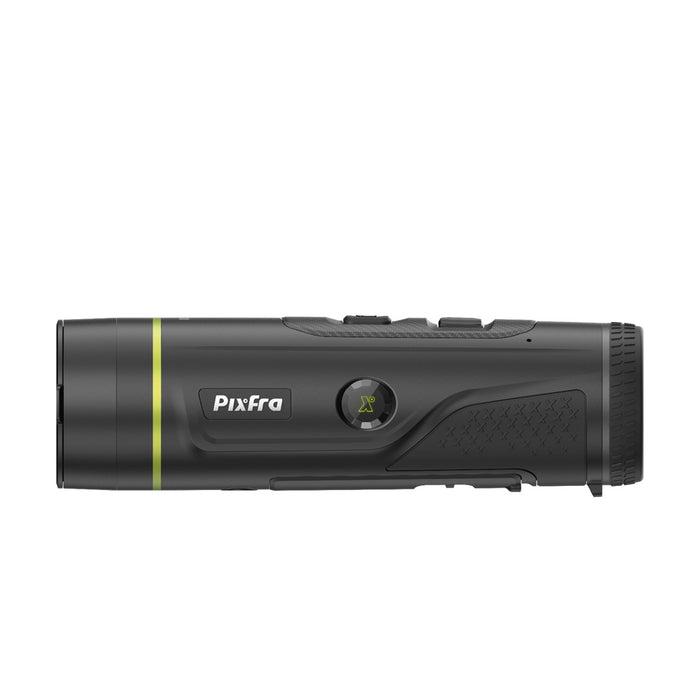

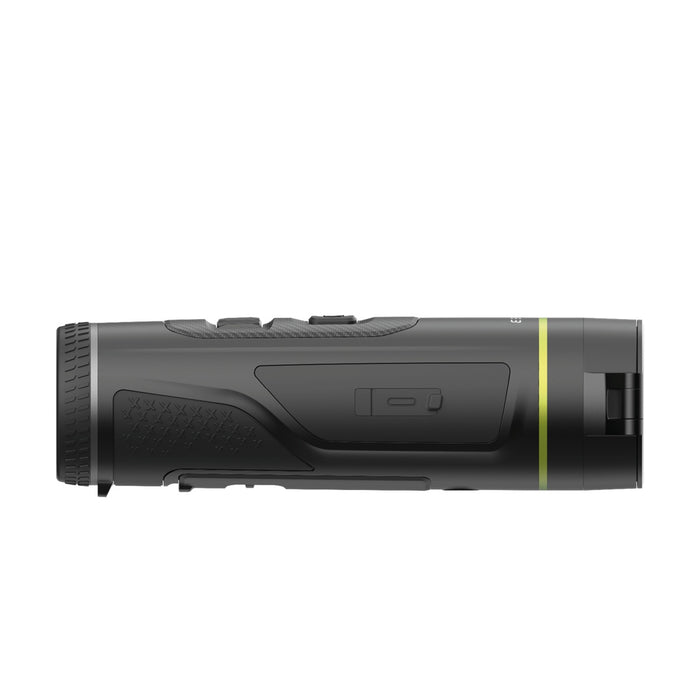

Pixfra Mile 3 M335 Thermal Imaging Monocular - 384×288, 12µm, 35mm, <15mK NETD

The Pixfra Mile 3 M335 Thermal Imaging Monocular combines advanced thermal imaging technology with a compact and lightweight design, weighing just 310g. Its 384×288, 12µm thermal sensor provides a detection range of up to 1800m, while <15mK NETD sensitivity helps deliver detailed thermal imagery in challenging conditions, including fog, rain and high humidity.

Featuring PIPS 3.0 Pro image processing, the Mile 3 M335 enhances fine details, reduces image noise and improves detector responsiveness in colder conditions. The 35mm f0.9 objective lens provides a 13.6 × 10.3m field of view at 100m, while the 2.5–20x magnification range and 8x digital zoom allow for detailed observation at extended distances.

An industry-first 3-in-1 integrated e-wheel provides convenient one-handed control of digital focus, zoom and menu functions. The large 0.49" 1920×1080 OLED display provides high-resolution thermal imagery, while six colour palettes offer flexibility for different observation conditions.

The Mile 3 M335 also features built-in video and still image recording, Wi-Fi connectivity and 64GB of internal storage. Supplied with two rechargeable 18650 batteries, it provides up to 11 hours of combined battery life, making it well suited to wildlife observation, ecological surveys and outdoor exploration.

Advanced Thermal Imaging – The 384×288, 12µm thermal sensor provides detailed thermal imagery with a detection range of up to 1800m.
High Thermal Sensitivity – <15mK NETD sensitivity helps reveal subtle temperature differences in fog, rain, humidity and other challenging conditions.
PIPS 3.0 Pro Processing – Pixfra's image processing system enhances fine detail, minimises noise and improves detector responsiveness, particularly in colder conditions.
Long-Range Observation – The 35mm f0.9 objective lens and 2.5–20x magnification range provide flexibility when observing subjects at extended distances.
8x Digital Zoom – Provides additional magnification for closer inspection of distant subjects.
Six Colour Palettes – White Hot, Black Hot, Iron Red, Alarm, Green Hot and Sepia modes allow the thermal image to be adapted to different observation conditions.
Enhanced Subject Identification – Sepia and Green Hot modes are designed to highlight subjects in red, helping create greater visual separation and depth.
One-Handed Operation – The integrated 3-in-1 e-wheel allows key functions to be controlled without needing to use both hands.
Digital Focus Control – Focus can be adjusted using the central control wheel rather than an external objective focus mechanism.
Intuitive Zoom Control – A single press of the e-wheel allows users to move through the available magnification range.
Integrated Menu Control – A long press opens the menu, with the e-wheel providing navigation and selection.
Rubberised Bodyshell – Embossed X markings on the grip and dioptre control provide a secure hold and easier operation in wet conditions.
Inward-Rotating Dioptre Wheel – The recessed design helps reduce the risk of accidentally knocking the dioptre out of adjustment.
Slimline Construction – Digital focus control removes the need for an external focus mechanism on the objective lens, helping maintain the compact profile.
Long Battery Life – Two rechargeable 18650 batteries can be quickly exchanged, providing up to 11 hours of combined operation.
Built-in Video Recording – Record video with audio directly to the monocular's internal storage for later review.
Still Image Capture – Capture photographs directly through the thermal imaging system.
Built-in Wi-Fi – Connect the Mile 3 to the Pixfra app for additional viewing and control functions.
Second-Screen Functionality – Use a connected smartphone as a second display, useful for surveys and group observation.
Remote Control – Access and adjust settings through the connected Pixfra app without directly operating the monocular.
Multi-Device Connectivity – Connect up to four smart devices simultaneously for group observations.
64GB Internal Memory – Provides capacity for up to 25 hours of video or approximately 150,000 photographs.
Hot Spot Tracking – Helps identify and follow areas of interest within the thermal image.
Picture-in-Picture – Provides an additional magnified view while retaining the wider thermal image.
Flexible FFC Calibration – Automatic, semi-automatic and manual calibration options are available.
Additional Observation Tools – Features include a compass, standby mode, defective pixel correction and local album functionality.
IP67 Protection – Designed to provide protection against dust and water for reliable outdoor use.
Wide Operating Temperature – Suitable for use in temperatures ranging from -30°C to +55°C.

Thermal Sensor: 384×288, 12µm
Thermal Sensitivity: <15mK NETD
Objective Lens: 35mm f0.9
FOV @ 100m: 19.3 × 14.3m
Focus Control: Manual
Close Focus Distance: 1m (3.28ft)
Detection Range: 1300m
Magnification Range: 1.8–14.4x
Digital Zoom: 8x
Display: 1920×1080, 0.49" OLED
Colour Palettes: 6
Dioptre: -5 D to +3 D
Eye Relief: 15mm
Video Recorder: Yes, with audio
Still Image Capture: Yes
Wi-Fi: Yes
Hot Spot Track: Yes
FFC Calibration: Auto, Semi-Auto, Manual
Standby Mode: Yes
Defective Pixel Correction: Yes
Compass: Yes
Picture-in-Picture: Yes
Local Album: Yes
Storage: Built-in, 64GB
Battery Type: 18650 ×2 provided
Battery Life: Up to 5.5 hours at 25°C, Wi-Fi off
Power Supply: 5 VDC
USB: USB Type-C
Operating Temperature: -30 to +55°C
Operating Humidity: 95%
Protection Grade: IP67
Dimensions (H × W × D): 160 × 52.6 × 50.5mm
Weight: 300g

Pixfra Mile 3 M335 Thermal Imaging Monocular

Pixfra 3 year warranty
