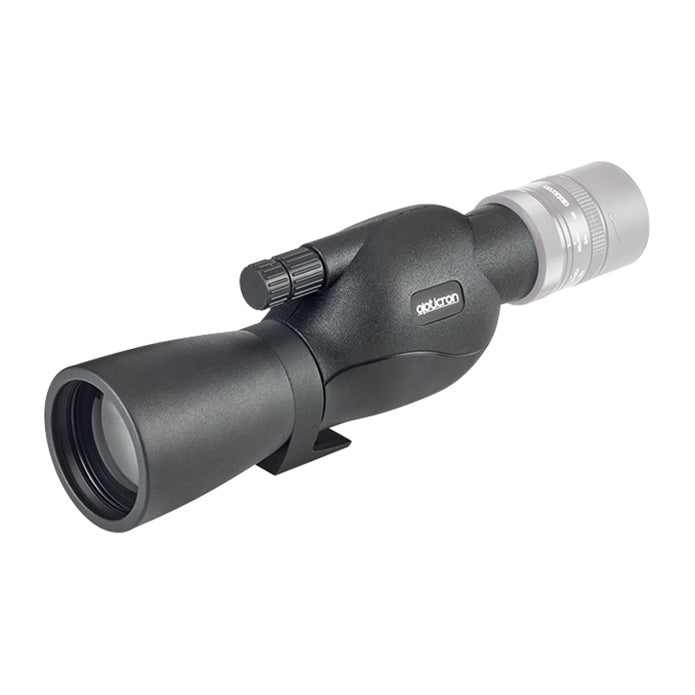

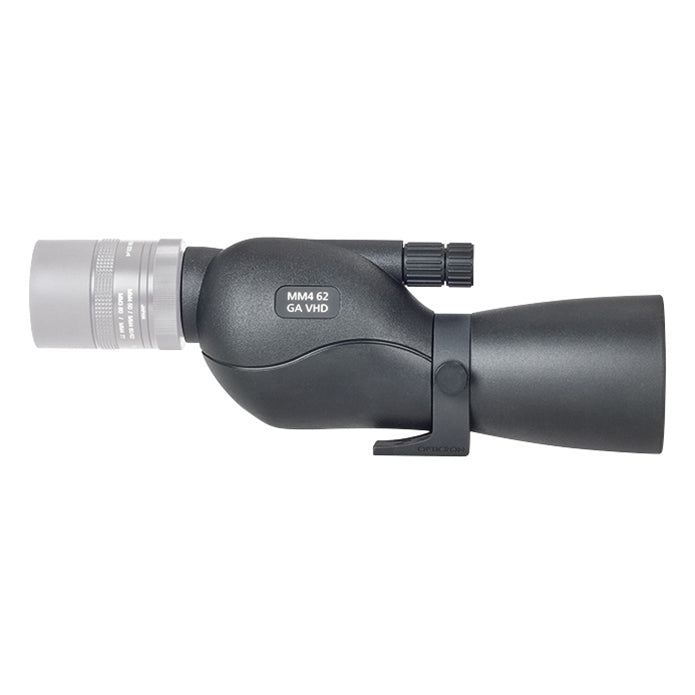

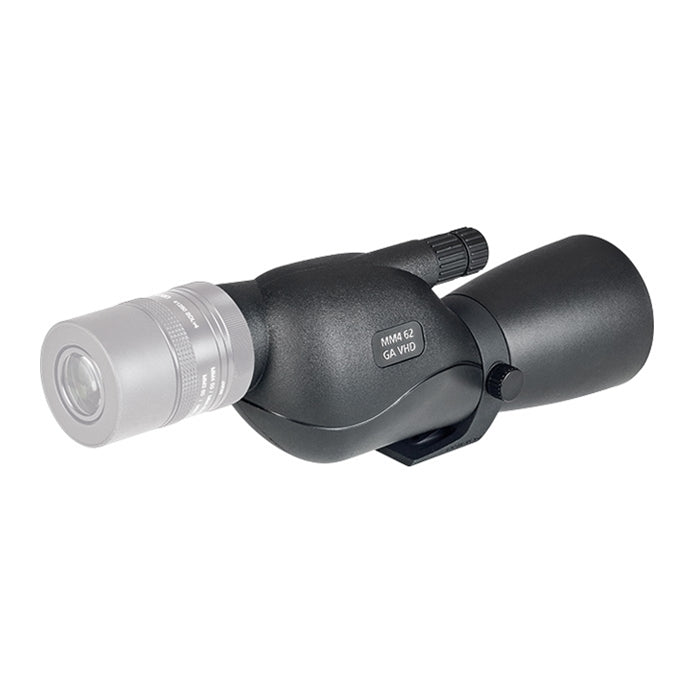

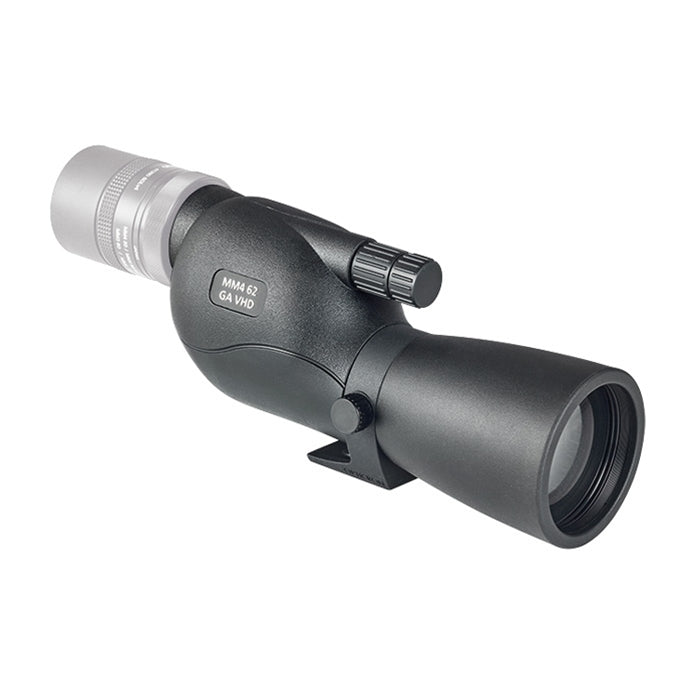

Opticron MM4 62 GA VHD Straight Travelscope Body

The MM4 62 GA VHD brings together everything that has made Opticron's travelscopes the number one choice for thousands of users worldwide, delivering on the maxim of "smaller, lighter, brighter, sharper" for anyone seeking a supremely compact and versatile instrument for accurate long-range observation on the move.

Designed and manufactured in Japan, the compact VHD optical system keeps the body to just 230mm (9.1") in length, while lightweight polycarbonate and aluminium alloy construction brings the weight down to 765g (27oz) , about the same as a pair of 42mm binoculars. That means it can be used without a support at magnifications below 20x for crystal-clear, flat-field observation, yet unlike binoculars it will deliver stunning clarity and definition up to 45x when fitted with SDL or HR3 zoom eyepieces. At its heart is a 62mm ED triplet objective paired with a fully multi-coated optical system for maximum brightness and colour fidelity.

The body is fully protected in soft-touch textured NBR rubber armour and is nitrogen gas filled and waterproof, so it copes comfortably with poor weather and rough handling in the field. Focusing is handled by a wide wheel focuser with an accurate 9:1 dual-speed ratio, allowing quick acquisition followed by fine adjustment, with a close focus of 3.9m. A large footprint tripod sleeve rotating +/- 90° with a 1/4" connection gives excellent stability and flexibility of eyepiece position, and a rubber objective lens cover is included.

The MM4 62 is compatible with HR2, HR3, HDF and SDL eyepieces, so existing fieldscope owners can simply transfer their eyepiece across to an MM4 body. For general observation we recommend the SDLv4 15-45x (41280) or the HR3 16-48x (41145).

Supplied in body-only format with a removable objective lens cover.

62mm ED triplet objective lens for high-resolution, colour-accurate images with minimal chromatic aberration

Fully multi-coated optical system across all lens and prism surfaces for maximum light transmission and brightness

Compact VHD optical design delivering flat-field, edge-to-edge sharpness in a supremely short body

Lightweight polycarbonate and aluminium alloy body keeping weight comparable to a pair of 42mm binoculars

Full soft-touch textured rubber armour for grip, impact protection and quieter handling in the field

Nitrogen gas filled and fully waterproof for reliable, fog-free performance in poor weather

Wide wheel focuser with 9:1 dual-speed focus system allowing rapid acquisition followed by precise fine adjustment

Large footprint rotating tripod sleeve with +/- 90° rotation for stable mounting and flexible eyepiece positioning

Hand-holdable at magnifications below 20x, with no support required for crystal-clear observation

Usable up to 45x when paired with SDL or HR3 zoom eyepieces for long-range detail beyond binocular capability

Compatible with HR2, HR3, HDF and SDL eyepieces, allowing existing fieldscope owners to transfer their eyepiece

Removable rubber objective lens cover supplied as standard

Designed and manufactured in Japan to Opticron's established travelscope standards

Colour: Black
Body Type: Straight
Size: 62
Objective Lens Diameter: 62mm / 2.4"
Close Focus: 3.9m / 12.8ft
Eye Relief: N/A (eyepiece dependent)
Prism Type: Porro
Prism Coating: Fully multi-coated
Lens Coating: Fully multi-coated
Focusing Speed: Dual
Waterproof: Yes
Nitrogen Gas Filled: Yes
Body Material: Aluminium alloy, polycarbonate
Armour Type: Full
Armour Material: NBR
Retractable Lens Hood: No
Tripod Sleeve & Mount: Rotating sleeve
Connection Type: 1/4"
Dimensions (LxWxD): 230x100x74mm / 9.1x3.9x2.9"
Length: 230mm
Width: 100mm
Depth: 74mm
Weight: 765g / 27oz / 1.7lb
EPTA Internal: 29x0.75mm
EPTA Small External: 35x1.1mm
EPTA Large External: 41.5x1.1mm
Serial Number Location: Bottom face of tripod sleeve
Country of Origin: Japan

Opticron MM4 62 GA VHD Straight Travelscope body
Removable rubber objective lens cover

5 Year Warranty
