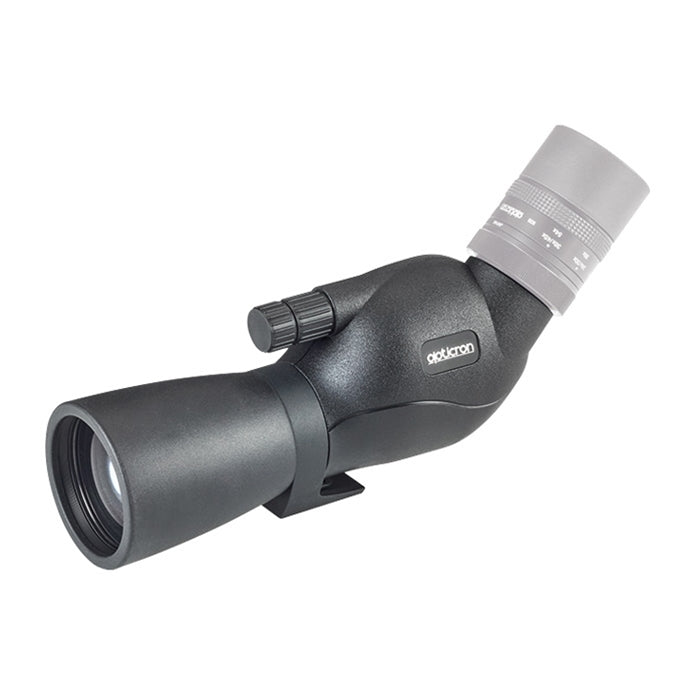

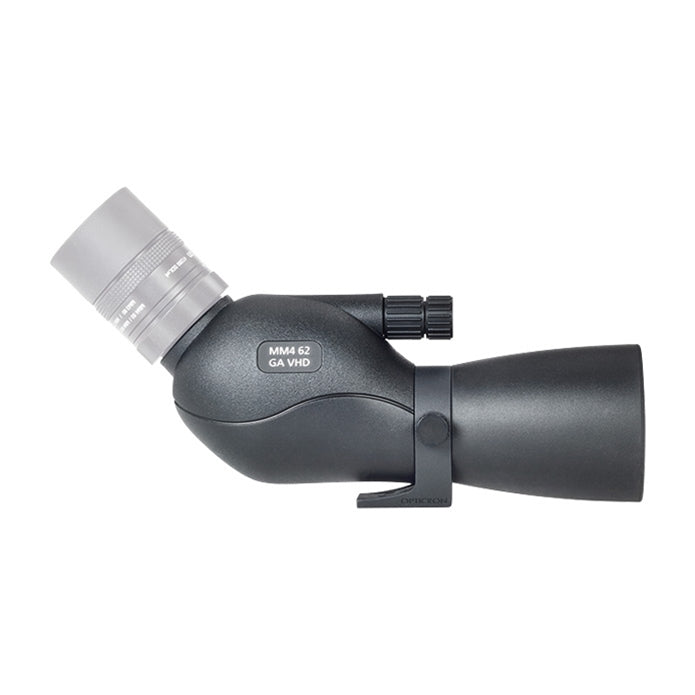

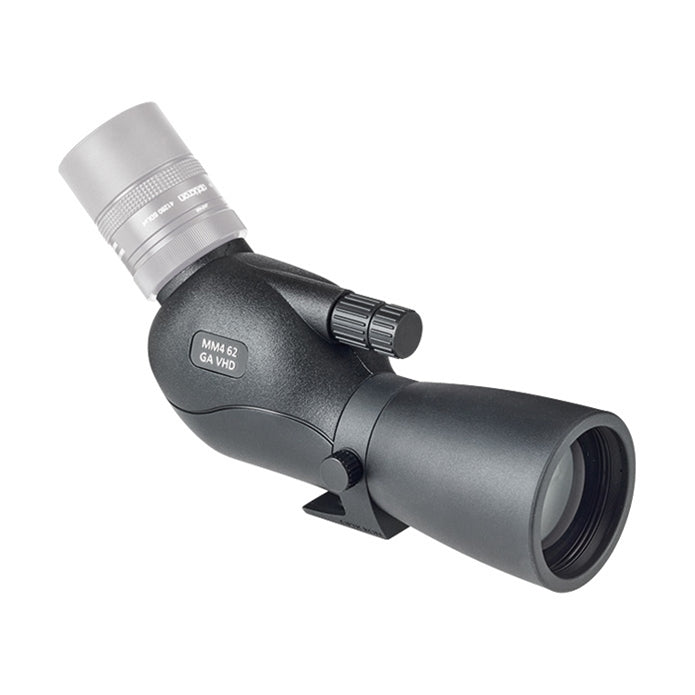

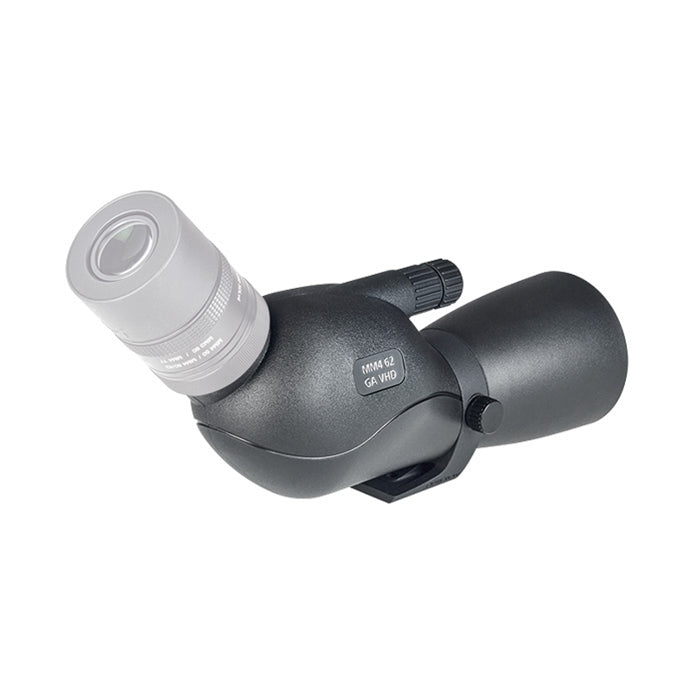

Opticron MM4 62 GA VHD 45deg Angled Travelscope Body

Combining everything that makes Opticron travelscopes the first choice for thousands of users worldwide, the MM4 62 GA VHD delivers on the maxim "smaller, lighter, brighter, sharper" , a supremely compact, versatile instrument built for accurate long-range observation on the move.

Designed and manufactured in Japan, the compact VHD optical system keeps the body to just 235mm (9.3") in length, while lightweight polycarbonate and aluminium alloy construction brings the weight down to 788g (27.8oz), roughly the same as a pair of 42mm binoculars. That makes it genuinely usable without a support at magnifications below 20x, delivering crystal-clear, flat-field observation handheld. Unlike binoculars, however, it will resolve stunning clarity and definition up to 45x when paired with an SDL or HR3 zoom eyepiece.

At the heart of the scope sits a 62mm ED triplet objective within a fully multi-coated optical system, producing high-contrast, colour-accurate images across the field. Fine adjustment comes via a wide wheel focuser with an accurate 9:1 dual-speed focus system, allowing rapid acquisition followed by precise final focus, with a close focus of 3.9m (12.8ft).

The 45° angled body is the natural choice for prolonged observation, digiscoping and shared viewing. It allows the tripod to sit lower and more stably, takes the strain out of scanning upwards for raptors or hillsides, and lets observers of differing heights share the same setup without constant readjustment. Paired with the large-footprint ±90° rotating tripod sleeve and standard 1/4" thread, you can rotate the body to whichever eyepiece position suits the terrain and your posture, without ever unmounting the scope.

Built for travel, the body is fully protected in soft-touch textured NBR rubber armour and is nitrogen gas filled and waterproof, so condensation and poor weather needn't cut a session short.

The MM4 62 is compatible with Opticron HR2/HR3, HDF and SDL eyepieces, so existing fieldscope owners can simply transfer their eyepiece across to an MM4 body. For general observation we recommend the SDLv4 15-45x (41280) or the HR3 16-48x (41145).

Supplied in body only format with an integrated rubber objective lens cover. Eyepiece sold separately.

62mm ED triplet objective lens for high-contrast, colour-accurate images

Compact VHD optical system designed and manufactured in Japan

Fully multi-coated optics and prisms for maximum light transmission and brightness

Flat-field observation with crystal-clear edge-to-edge definition

Handheld capability at magnifications below 20x without a support

Lightweight polycarbonate and aluminium alloy body
Full soft-touch textured NBR rubber armour for grip and impact protection

Nitrogen gas filled and fully waterproof against moisture and internal fogging

Wide wheel focuser with 9:1 dual-speed focus system for rapid acquisition and precise final adjustment

45deg Angled body for comfortable prolonged viewing, upward scanning and shared use

Large footprint ±90° rotating tripod sleeve for flexible eyepiece positioning without unmounting

Standard 1/4" tripod connection

Integrated rubber objective lens cover included

Compatible with Opticron HR2/HR3, HDF and SDL eyepieces, including existing fieldscope eyepieces

Supplied body only, allowing you to choose the eyepiece that suits your use

Colour: Black
Body Type: 45deg Angled
Size: 62
Lens Diameter: 62mm / 2.4"
Close Focus: 3.9m / 12.8ft
Eye Relief: N/A (eyepiece dependent)
Waterproof: Yes
Nitrogen Gas Filled: Yes
Prism Type: Porro
Prism Coating: Fully multi-coated
Lens Coating: Fully multi-coated
Focusing Speed: Dual
Tripod Sleeve & Mount: Rotating sleeve
Connection Type: 1/4"
Body Material: Aluminium alloy, polycarbonate
Armour Type: Full
Armour Material: NBR
Retractable Lens Hood: No
Length: 235mm
Width: 100mm
Depth: 74mm
Dimensions (LxWxD): 235 x 100 x 74mm / 9.3 x 3.9 x 2.9"
Weight: 788g / 27.8oz / 1.7lb
EPTA Internal: 29 x 0.75mm
EPTA Small External: 35 x 1.1mm
EPTA Large External: 41.5 x 1.1mm
Serial Number Location: Bottom face of tripod sleeve
Country of Origin: Japan

Opticron MM4 62 GA VHD travelscope body
Rubber objective lens cover

5 Year Warranty
