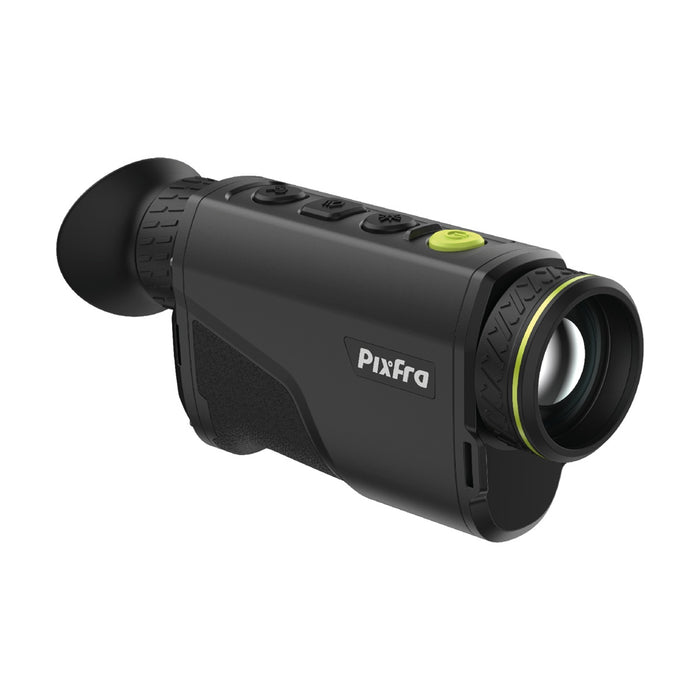

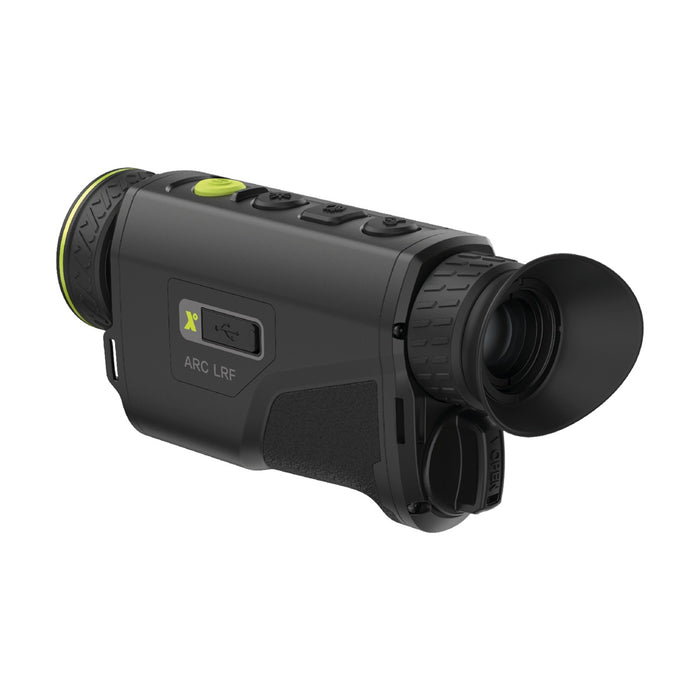

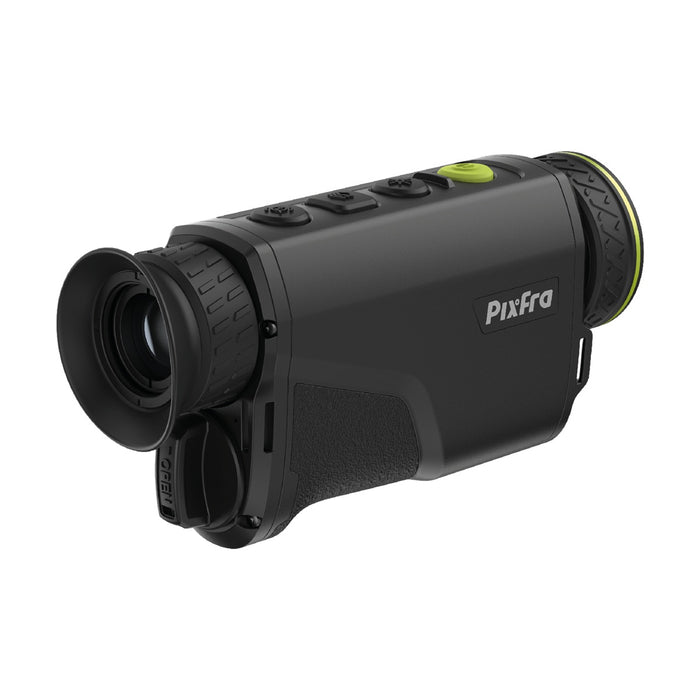

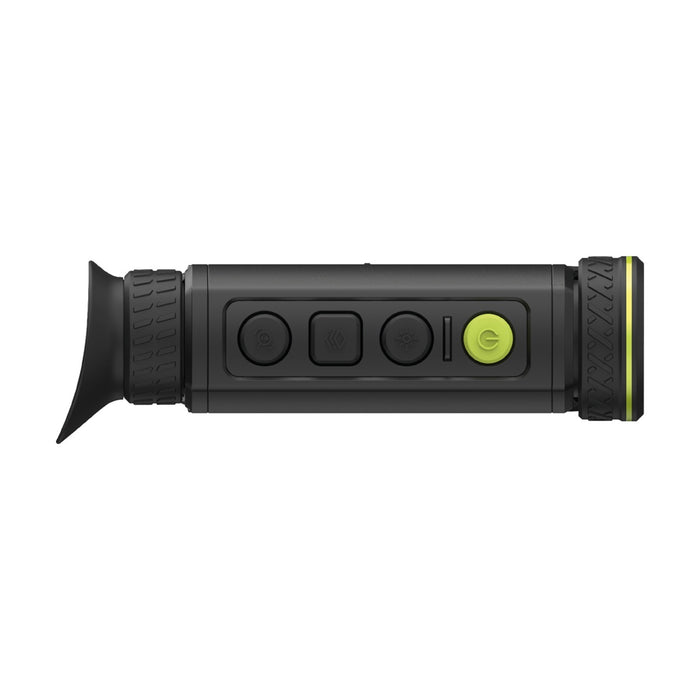

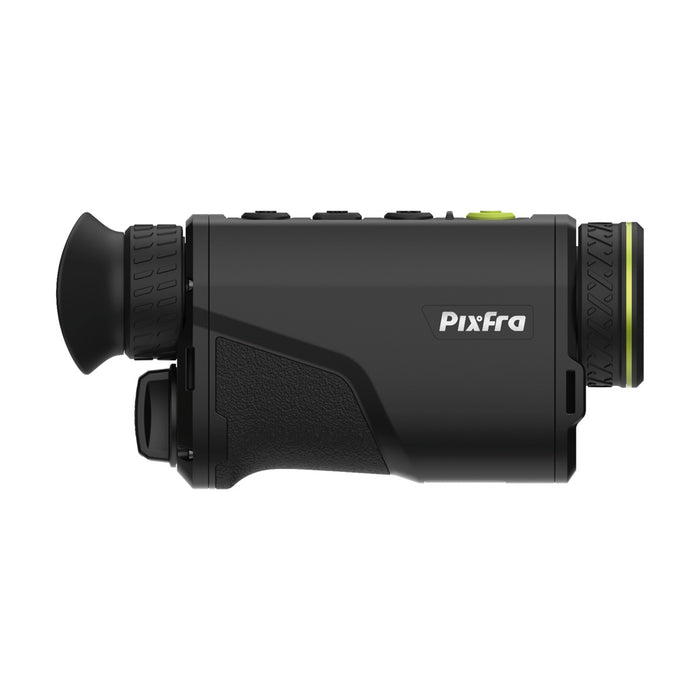

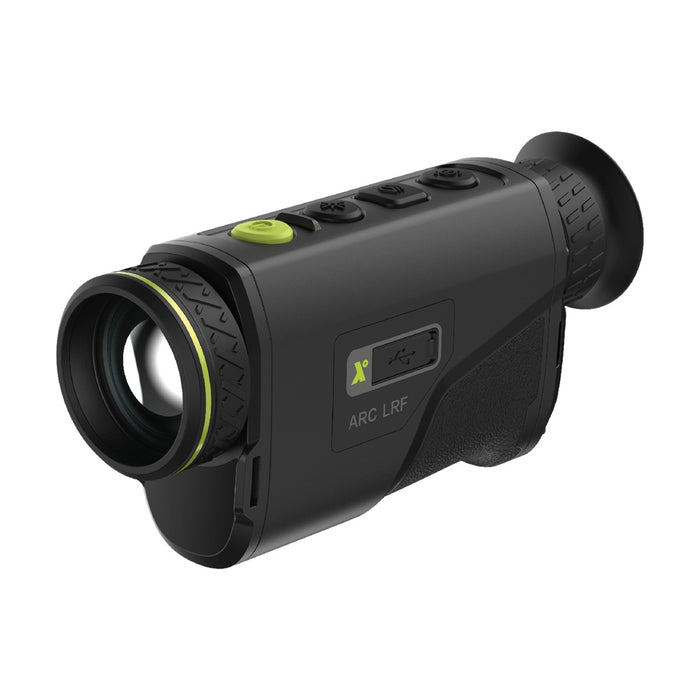

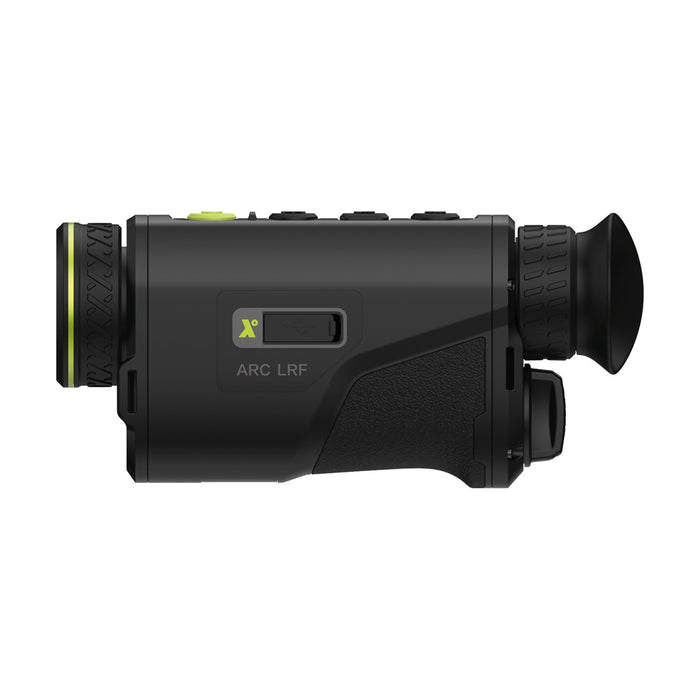

Pixfra™ Arc LRF A635 Pro Thermal Monocular w/Laser Rangefinder (640x512 12µm Detector/35mm Lens)

Designed with ergonomics in mind, it combines a compact magnesium alloy body, rubberised grip, and weather-sealed IP67 protection for comfortable and reliable use in any environment. With up to 12 hours of uninterrupted operation (two 18650 batteries included), app connectivity, and multiple sharing options, the Arc LRF A635 Pro is an advanced thermal monocular built for those who demand precision and performance.

High-performance thermal sensor: 640×512, 12µm <20mK NETD sensor delivers crisp, detailed thermal imagery.

Powerful optics: 35mm f1.0 lens with a 21.9×17.6m @ 100m field of view and detection range up to 1800m.

Integrated laser rangefinder: Accurate measurements up to 1000m with ±1m precision.

Rugged, ergonomic design: Compact magnesium alloy housing with rubberised grip, contoured eyecup, and IP67 protection.

Extended battery life: Up to 12 hours operation with two included 18650 rechargeable batteries.

Seamless connectivity: Wi-Fi enabled with Pixfra Outdoor app support for live sharing with up to four users.

Equipped with a 640×512, 12µm thermal sensor with <20mK NETD sensitivity, delivering exceptionally sharp and detailed thermal imagery.

Features a 35mm f1.0 objective lens with a wide 21.9×17.6m field of view at 100m and a detection range of up to 1800m.

Pixfra PIPS 2.0 image processing reduces noise, boosts contrast, and enhances fine details for vivid observation in all conditions.

Integrated precision laser rangefinder provides accurate distance measurements up to 1000m with ±1m accuracy, seamlessly built into the design.

Constructed from a lightweight magnesium alloy housing with a rubberised textured grip and contoured eyecup for improved handling and comfort.

Fully IP67 weather-sealed, protecting the device against rain, snow, fog, and high humidity.

Supplied with two replaceable 18650 batteries, each offering up to 6–7 hours of operation, with a secure twist-cap compartment for quick battery changes.

Offers six colour palettes, picture-in-picture mode, hot spot trace, and built-in audio recording to enhance observation versatility.

Wi-Fi enabled for connection with the Pixfra Outdoor app, allowing live screen sharing with up to four people within 20m.

Detector Type: Vanadium oxide uncooled focal plane detector
Thermal Sensor: 640×512, 12µm, <20mK NETD
Frame Rate: 50 Hz
Lens: 35mm f1.0
FOV (m @ 100 m): 21.9 × 17.6
Thermal Focus Control: Manual
Close Focus Distance: 2 m (6.56 ft)
Rangefinder: Built-in precision laser rangefinder
Distance Measurement Range: 1000 m
Digital Zoom: 1×, 2×, 4×, 8×
Magnification: 2.36×
Colour Palettes: 6 (white hot / black hot / iron red / alarm / amber / emerald)
Display: 0.41″ 1440×1080 OLED
Storage: 32 GB
Uniformity Correction: Auto, manual
Picture in Picture (PiP): Yes
Audio Recording: Yes
Hot Spot Trace: Yes
Wi-Fi: Yes
Power Supply: 5 VDC/1 A, USB Type-C
Battery Type: 1 replaceable 18650 battery
Battery Capacity: 3,200 mAh
Battery Operating Life: Up to 6 hours (per battery, depending on temperature)
Environmental Protection: IP67
Product Dimensions: 172 × 53 × 78 mm / 6.77″ × 2.09″ × 3.07″ (L × W × H)
Packaging Dimension: 228 × 120 × 187 mm / 8.98″ × 4.72″ × 7.36″ (L × W × H)
Weight: 375 gDetector Type
Thermal Sensor: 640×512, 12µm, <20mK NETD
Frame Rate: 50 Hz
Lens: 35mm f1.0
FOV (m @ 100 m): 21.9 × 17.6
Thermal Focus Control: Manual
Close Focus Distance: 2 m (6.56 ft)
Rangefinder: Built-in precision laser rangefinder
Distance Measurement Range: 1000 m
Digital Zoom: 1×, 2×, 4×, 8×
Magnification: 2.36×
Colour Palettes: 6 (white hot / black hot / iron red / alarm / amber / emerald)
Display: 0.41″ 1440×1080 OLED
Storage: 32 GB
Uniformity Correction: Auto, manual
Picture in Picture (PiP): Yes
Audio Recording: Yes
Hot Spot Trace: Yes
Wi-Fi: Yes
Power Supply: 5 VDC/1 A, USB Type-C
Battery Type: 1 replaceable 18650 battery
Battery Capacity: 3,200 mAh
Battery Operating Life: Up to 6 hours (per battery, depending on temperature)
Environmental Protection: IP67
Product Dimensions: 172 × 53 × 78 mm / 6.77″ × 2.09″ × 3.07″ (L × W × H)
Packaging Dimension: 228 × 120 × 187 mm / 8.98″ × 4.72″ × 7.36″ (L × W × H)

Pixfra™ Arc LRF A635 Pro Thermal Monocular w/Laser Rangefinder (640x512 12µm Detector/35mm Lens)

Pixfra 3 year warranty
