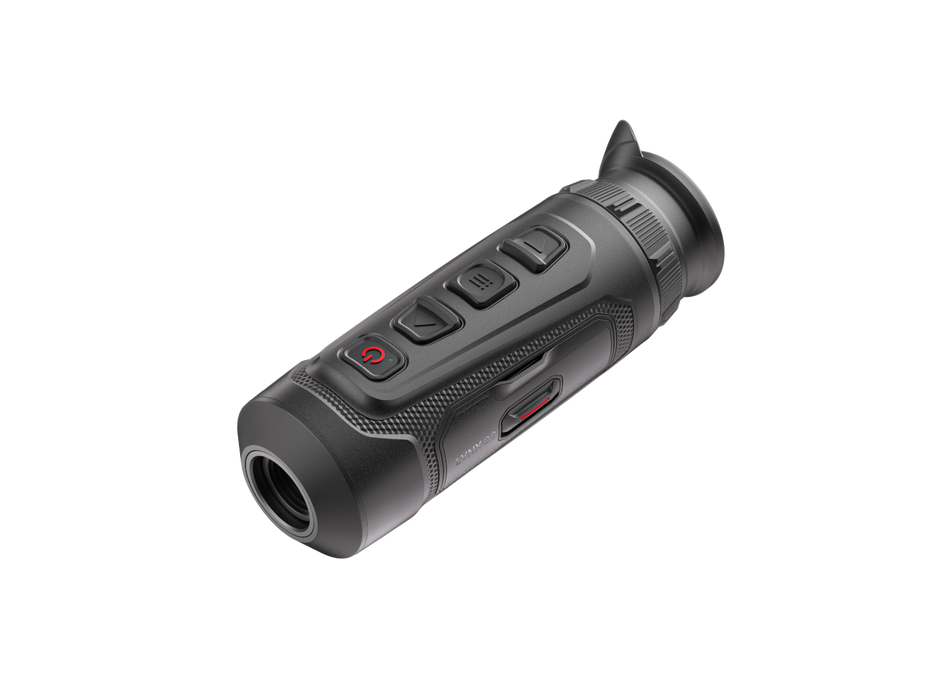

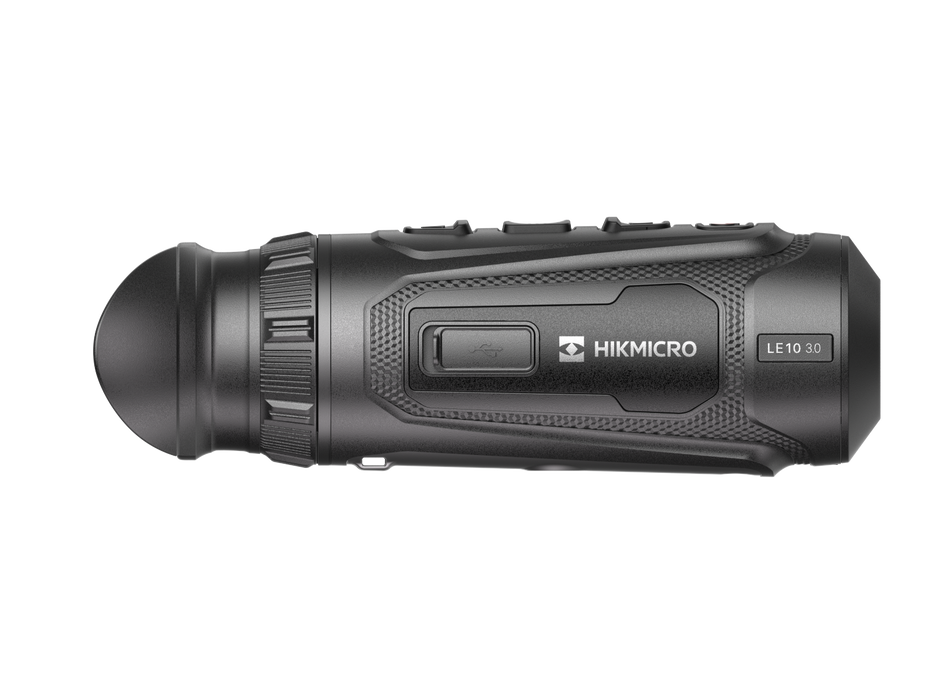

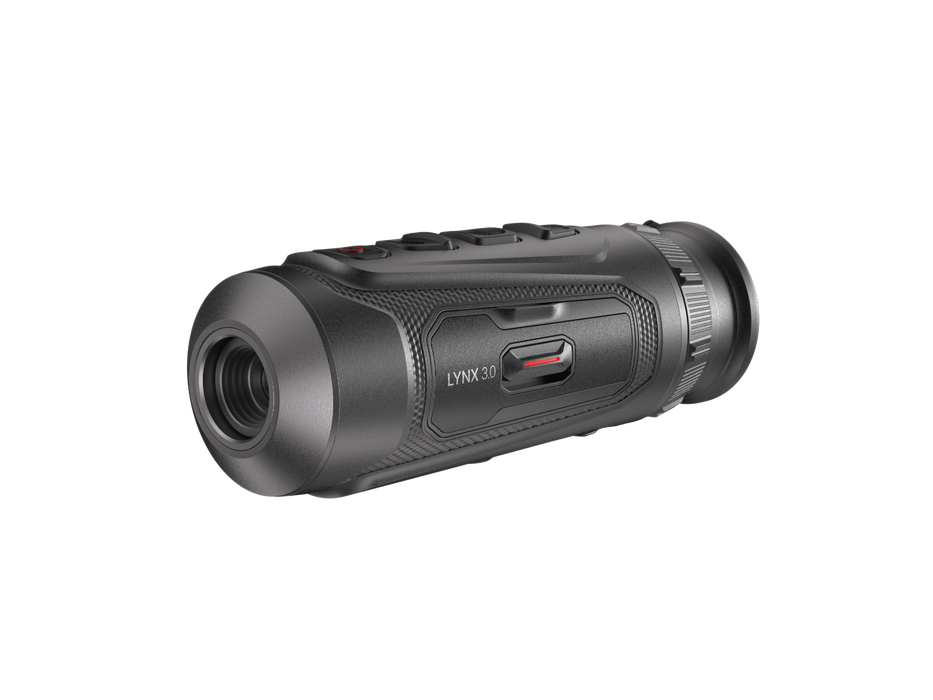

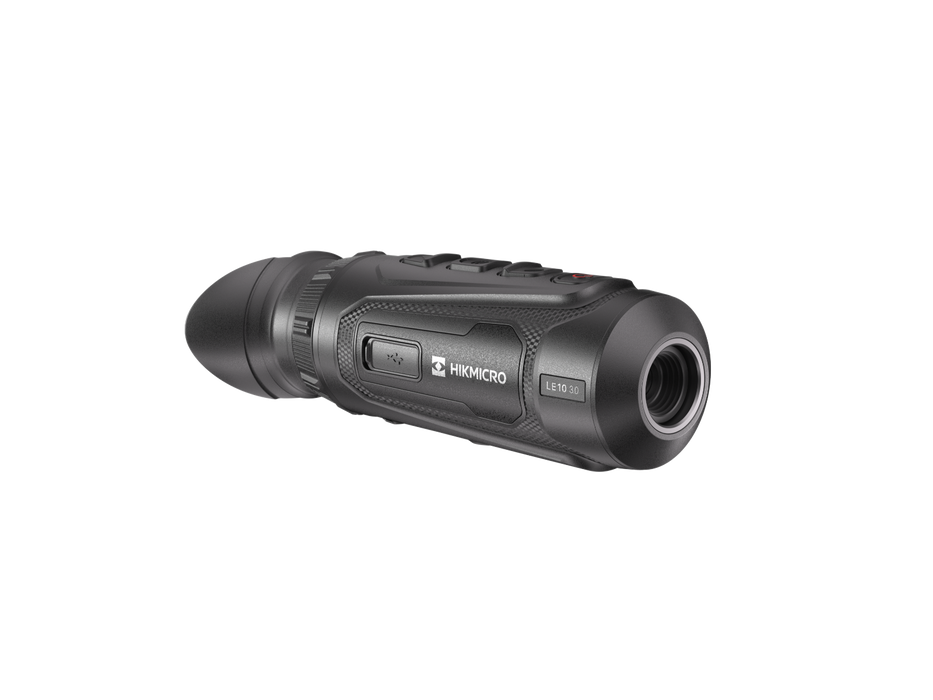

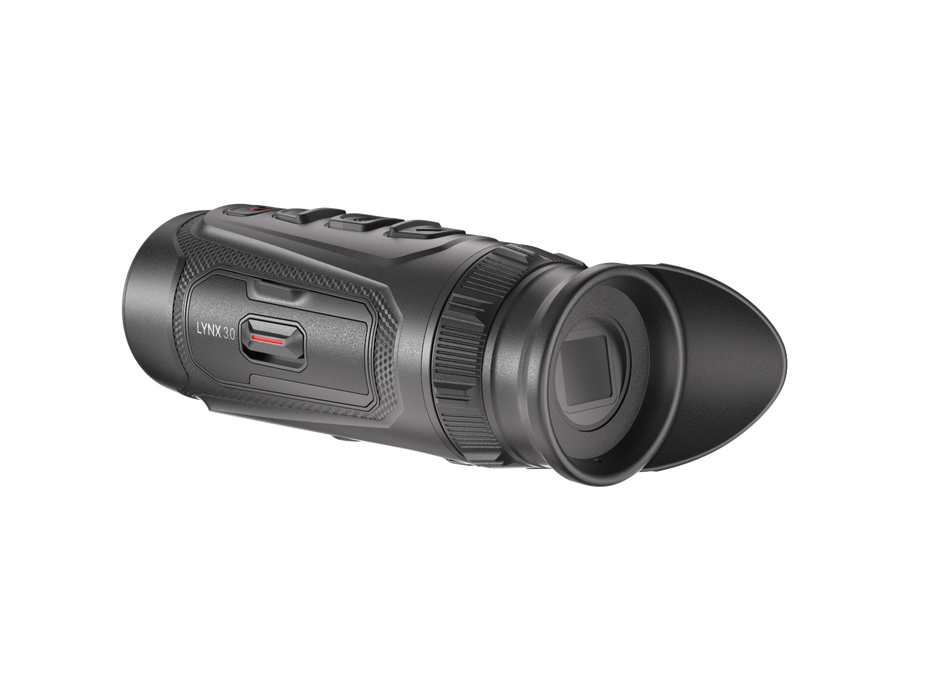

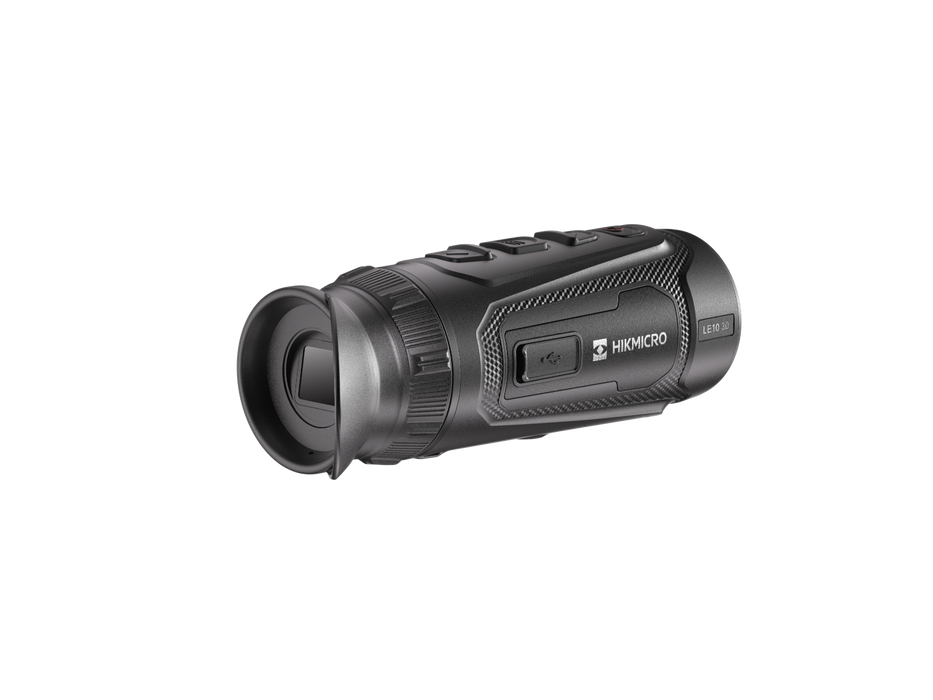

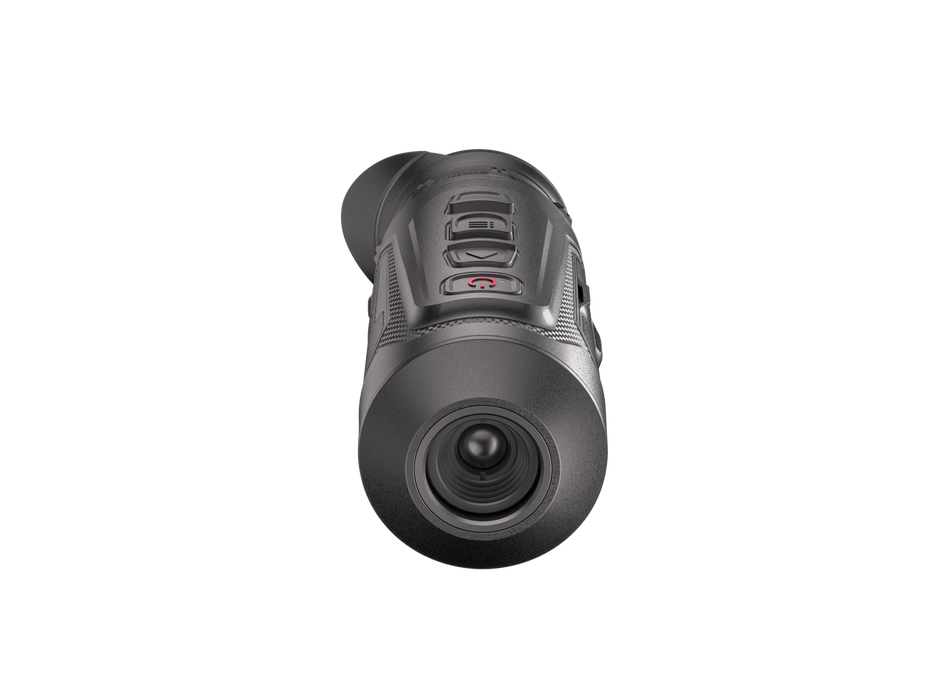

HIKMICRO Lynx 3.0 LE10 10mm Thermal Monocular - <20mK 256x192px 12µm 50Hz

The HIKMICRO Lynx 3.0 LE10 is designed for professionals seeking compact, high-value thermal imaging for close-range observation. Equipped with a 256x192 thermal detector and a 9.7mm F1.0 lens, it provides a 1.4x base magnification and an 18° field of view, delivering clear, detailed imaging across a detection range of up to 500 metres.

Powered by AI-driven Image Pro 3.0 and Zoom Pro algorithms, the LE10 ensures exceptional image sharpness and stability, even in challenging environments. The HIKMICRO Shutterless Image System (HSIS) guarantees silent, seamless image processing, enabling uninterrupted operation during critical tasks such as wildlife observation, surveillance, or search and rescue.

Built for efficiency and endurance, the LE10 features a replaceable 18650 battery delivering up to 5.5 hours of runtime at -20°C. Compact and lightweight at just 291.5 grams, it’s pocket-sized yet robust enough for demanding field use. This is the ideal thermal monocular for users who require reliability, precision, and value in one professional package.

256×192 thermal detector with NETD < 20 mK
9.7mm F1.0 lens with 500m detection range
AI-powered Image Pro 3.0 and Zoom Pro algorithms
HIKMICRO Shutterless Image System (HSIS)
0.39” 1024×768 AMOLED display
Up to 5.5 hours’ operation at -20°C
Lightweight, pocket-sized 291.5g design

Image Sensor: VOx Uncooled Focal Plane Arrays
Max. Resolution: 384 × 288
Frame Rate: 50 Hz
Pixel Interval: 12 μm
Response Waveband: 8 μm to 14 μm
NETD: Less than 15 mK (@25°C), F#=1.0
Lens (Focal Length): 35 mm, F1.0
Focus Mode: Focus Wheel
Min. Focusing Distance: 3.5 m
Magnification: 3.4 × - 27.2 × (8×)
Field of View (H × V), Degrees / m @100 m: 7.5° × 4.6° / 13.1 m × 8.0 m
Detection Range: 1800 m
Display: 1920 × 1080, 0.49 inch, AMOLED
Contrast Adjustment: Yes
Brightness Adjustment: Yes
Palettes: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
Exit Pupil: 6 mm
Eye Relief: 20 mm
Diopter (Range): -5 D to +3 D
Tone Adjustment: Cold, Warm
Zoom Pro: Yes
HSIS (HIKMICRO Shutterless Image System): Yes
Image Pro 3.0: Yes
Sync Pro: Yes
Battery Type: Replaceable and rechargeable 18650 battery
Protection Level: IP67
Weight: 354.5 g with Battery

1 x Lynx 3.0 Thermal Monocular
1 x Quick Start Guide
2 x 18650 Battery
1 x Type-C USB Cable
1 x Battery Charger
1 x Lint Free Cloth

3 Year Warranty

HIKMICRO has a full UK service and technical centre, complete with Hotline: 0203 514 0092 available to assist with any issues.
