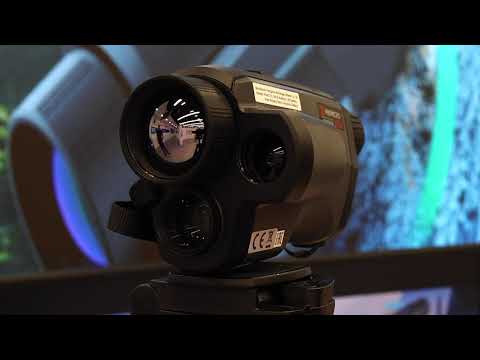

HIKMICRO Gryphon GQ35 35mm Pro 640x512 12µm Fusion Thermal & Optical Monocular

You can use the Gryphon in several distinct image modes including a conventional thermal monocular with the choice of 4 colour palettes, highly detailed daylight & night vision optical camera or the unique Fusion mode which uses the detail from the optical channel to boost the definition and detail of the thermal image.

The Gryphon chassis also introduces a range of new features. These include a jog wheel that allows you to scroll the magnification up and down as you would with a conventional optical scope, an optional laser range finder and a removable 18650 battery. The large 1024x768 OLED display gives you a bright and crisp view of your surroundings that’s easy on your eye.

At the centre of the Gryphon is HIKMICRO’s 640x512px, 12µm thermal sensor with a sub 35mk NETD. This highly accurate thermal sensor is capable of detecting small temperature differences, building a highly detailed image, even in the harshest of conditions.

The thermal sensor is paired with HIKMICRO’s high performance 35mm focal length lens system which delivers 2x optical magnification with up to 8x digital magnification also available to expand the detail in your image. The thermal lens system also has a high specification F1.0 aperture, this means that all of the available thermal signals reach the sensor. This combines with the highly accurate thermal sensor to deliver excellent thermal performance.

This is paired with a high-resolution optical camera that is capable of providing a detailed image both in daylight hours and in complete darkness. You can quickly switch between the pure thermal view and the detailed optical model to detect and accurately identify heat sources.

The Gryphon also includes the unique Fusion mode which adds the detail from the optical image to boost the performance of the thermal channel, delivering the ultimate in detection and detail.

The Gryphon uses an all-new chassis design which has been developed to be easily held and operated in one hand. There are three buttons on the top of the unit that make it easy to operate the laser range finder and switch between image modes. HIKMICRO have also included a revolutionary jog wheel that falls comfortably to the tip of your index finger and can be used to scroll up and down the magnification like a conventional optical scope. This jog wheel is also used to quickly navigate the menu system.

The Gryphon is also the first Monocular in the HIKMICRO range to be powered by the industry standard 18650 removable battery. This makes extended hunting trips possible without any power concerns. Replacement batteries are readily available and economical to buy. There is also a high specification charger included with your Gryphon, this provides lots of detail about the charging status and health of your batteries ensuring that you aren’t caught in the field with a dead battery.

There are lots of other small improvements that have been included like the power button includes a status light so you can see at a glance if the unit is powered on or in standby mode.

As with all other HIKMICRO thermal products you can access the T-Vision app to stream, record and control your Gryphon. You can also record images and videos from your trips to the 16GB internal memory. The latest version of the T-Vision app offers extended features like transferring images stored on the device into your phone and also the ability to install the latest firmware.

All thermal sensors used in HIKMICRO products are designed, developed and manufactured by HIKMICRO. This guarantees you unrivalled performance and value for money. You are also covered by the 3 year HIKMICRO UK warranty. Should you encounter a problem with your product, HIKMICRO has UK based technicians who can resolve any issue quickly.

Personal favourite for Opticswarehouse - Superb combination of High Quality sensor and price point
640x512 Thermal Sensor with a 12 micron pixel pitch
<35mk NETD - High Thermal Sensitivity
1400m Detection distance - Expect to ID a fox out to 500m in good atmospheric conditions
F35 1.0 Germanium Objective lens - Allows thermal sensor to recieve as much thermal information as possible
Fusion channel
Optical channel

MAIN
Sensor: 640 x 512 @ 12µm
Objective Lens (Focal Length): 35mm
Detection Range (Human 1.8 x 0.5m): 1400m

SENSOR
Type: VOx Uncooled Focal Plane Arrays
Resolution, pixels: 640 x 512
Pixel pitch, µm :12µm
Frame rate, Hz: 50 Hz
NETD: <35mK

THERMAL OPTICS
Objective len: F1.0
Magnification (Optical): 2x
Magnification (Digital): 1x, 2x, 4x, 8x
Field of view: 12.52°× 10.03°

FUSION CAMERA
Sensor resolution: 1960x1200px
Wavelength sensitivity: 400-1000 nm
Focal length: 22mm

LASER RANGEFINDER
LRF Fitted: No

DISPLAY
Type: 9.9mm, OLED
Resolution, Pixels: 1024 ×768
Colour Palettes: White Hot, Black Hot, Red Hot, Fusion, Visible, Thermal & Visible Fusion

VIDEO RECORDER
Build in memory, Gb: 16 GB

ADDITIONAL FEATURES
WiFI hot spot: YES
T-Vision App support: YES

ENVIRONMENTAL
Degree of protection, IP code : IP67
Dust protection: Protected against dust ingress
Water protection: Protected against temporary submersion in water
Operating temperature range: -20 °C to 55 °C

WEIGHT & SIZE
Dimensions, mm: 87mm x 73mm x 167mm
Weight, kg: 0.5 kg

POWER SUPPLY

Operating time on battery (WiFi & Hot tracking disabled): 4.5 Hours
Charging interface: Removable 18650 battery

HIKMICRO Gryphon Thermal Device
User Manual
Lens Cleaning Cloth
18650 Battery Charger
USB C Cable

Main Unit: 3 Years
